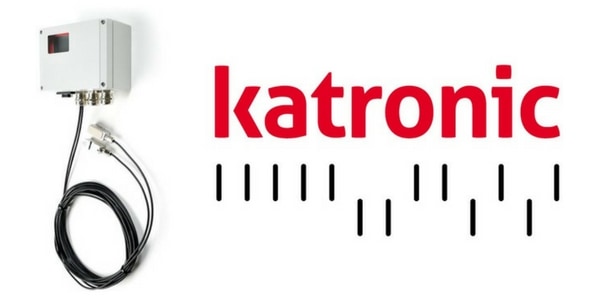

Katronic KATflow 100 Ultrasonic Clamp-On Flowmeter (Fixed)

Katronic KATflow 100 Ultrasonic Clamp-On Flowmeter (Fixed)

Non-Hazardous & Hazardous Area Flowmeters

Ultrasonic Flow Meters

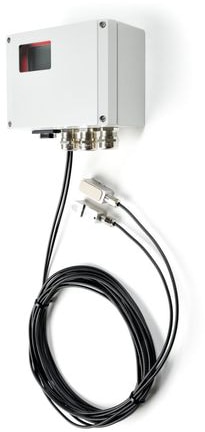

Katronic’s KATflow 100 is a fixed flowmeter which utilises ultrasonic technology to measure the flow rate of liquids within pipes without entering the pipe. The KATflow 100 is a compact and cost effective flowmeter for permanent installation and flow measurement on single pipes.

KATflow 100 flowmeters are suitable for pipe diameters ranging from 10mm up to 3,000mm and have a robust IP66 aluminium enclosure and has an LCD display and five key keypad.

Stainless steel sensors, cables and connectors are supplied as standard for temperature ranges from -30ºC to +80ºC and the KATflow 100 can be wall or pipe mounted as required.

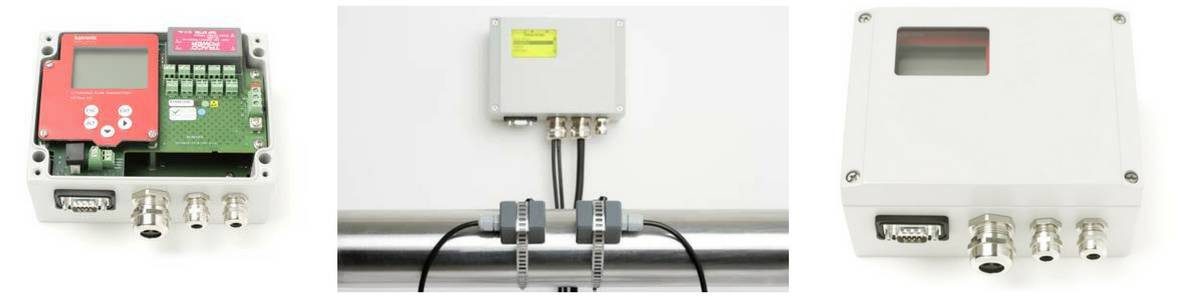

Katronic KATflow 100 Ultrasonic Clamp-On Flowmeter (Fixed)

Katronic KATflow 100 Ultrasonic Clamp-On Flowmeter (Fixed) – Features

Pipe diameter range 10mm to 3,000mm
Temperature range for sensors – -30ºC to +80ºC (-22ºF to +176ºF)
Weight 750g
Robust IP66 aluminium enclosure
Sturdy unit with LCD display and five key keypad
Wall or pipe mounted
Low cost of ownership
Process outputs including RS 485, Modbus RTU and HART compatible output
PT100 inputs for heat quantity (thermal energy)
Bi-directional measurement with totaliser function
Innovative installation wizard for quick and intuitive programming
Configuration can be changed to suit customer requirements
Optional – Blind transmitters supplied pre-configured or with external programming tool
Optional – Available with special “P” transducers for simple applications
Optional – PT100 sensors or analogue temperatures inputs for heat quantity measurement and temperature compensation

Katronic KATflow 100 Ultrasonic Clamp-On Flowmeter (Fixed) – In Operation

The KATflow 100 is an ideal flowmeter solution for applications including water and wastewater measurements, replacement of electromagnetic flowmeters, monitoring and controlling of Heating, Ventilation and Air Conditions (HVAC) systems, automated process control, shipping applications, as a cost-effective solution for large scale projects and more.

KATRONIC KATFLOW 100 ULTRASONIC CLAMP-ON FLOWMETER (FIXED) – Technical Specification

Transmitter Performance
Flowmeter Measuring Principle	Ultrasonic transit time difference
Flow Velocity Range	0.01 to 25m/s
Resolution	0.25mm/s
Repeatability	0.15% of measured value, ±0.015m/s
Accuracy	Volume Flow: ±1 to 3% of measured value depending on application ±0.5% of measured value with process calibration Flow Velocity (Mean): ±0.5% of measured value
Turn Down Ratio	1/100 (Equivalent to 0.25 to 25m/s)
Measurement Rate	100 Hz (Standard)
Response Time	1s (Standard), 90ms (Optional)
Damping of Display Value	0 to 99s (Selectable by user)
Gaseous and Solid Content of Liquid Media	<10% of volume
General
Enclosure Type	Wall mounted, optional pipe stands and brackets available
Degree of Protection	IP65 according to EN 60529
Operating Temperature	-10 to +60ºC (+14 to +140ºF)
Housing Material	Die-cast aluminium
Measurement Channels	1
Power Supply	100 to 240V AC, 50/60Hz 9 to 36V DC Special solutions (e.g solar panel, battery) on request
Display	LCD graphic display, 128 x 64 dots, backlit
Dimensions	120mm (H) x 160mm (W) x 81mm (D) (Without cable glands)
Weight	Approx 750g
Power Consumption	<5W
Operating Languages	English, French, German, Dutch, Spanish, Italian, Russian, Czech, Turkish, Romanian (Others on request)
Communication
Type	RS 232 (used for external programming and data transfer), USB cable (optional), RS 485 or Modbus RTU (optional)
Transmitted Data	Measured and totalised value, parameter set and configuration, logged data
KATdata+ Software
Functionality	Download of measured values/parameter sets, graphical presentation, list format, export to third party software, online transfer of measured data
Operating Systems	Windows 8, 7, Vista, XP, NT, 2000 Linux
Quantity and Units of Measurement
Volumetric Flow Rate	m³/h, m³/min, m³/s, l/h, l/min, l/s USgal/h (US gallons per hour), USgal/min, USgal/s bbl/d (Barrels per day), bbl/h, bbl/min
Flow Velocity	m/s, ft/s, inch/s
Mass Flow Rate	g/s, t/h, kg/h, kg/min
Volume	m³, l, gal (US gallons), bbl
Mass	g, kg, t
Heat Flow	W, kW, MW (with heat quantity measurement option)
Heat Quantity	J, kJ, kW/h (with heat quantity measurement option)
Temperature	ºC (with heat quantity measurement option)
Process Inputs (Galvanically Isolated)
Temperature	PT100 (clamp-on sensors), three-or four-wire circuit, measurement range: -30 to +250ºC (-22ºF to +482ºF), resolution: 0.1K, accuracy: ±0.2K
Current	0/4 to 20mA active or 0/4 to 20mA passive, U = 30V, Ri = 50Ω, accuracy: 0.1% of measured value
Process Outputs (Galvanically Isolated)
Current	0/4 to 20mA active/passive (R load <500 Ω), 16 bit resolution, U = 30V, accuracy: 0.1%
Digital Open-Collector	Value: 0.01 to 1000/unit, width: 1 to 990ms, U = 24V, l max = 4mA
Digital Relay	2 x Form A SPST (NO and NC), U = 48V, l max = 250mA
Voltage	0 to 10V, R load = 1000 Ω
Frequency	2Hz to 10kHz, 24/4mA
HART Compatible	0/4 to 20mA, 24V DC, R GND = 220Ω

Visit Katronic KATflow 170 for hazardous area flowmeters with ATEX Certification for metering the flow in Zone 1 and Zone 2 explosive atmospheres.

Katronic KATFlow 100 Ultrasonic Flow Meter Applications

Pharmaceutical	Water for injection measurement Measurement of sterile fluids Clean room applications
Building Services	Installation on hot water lines Energy flow measurement Installation on chilled water systems
Water and Wastewater	Replacement of electromagnetic flowmeters Drinking water and effluent measurements Pump testing
Aircraft and Aerospace	Monitoring of hydraulic systems Use in landing gear test benches Measurement of specialist media
Marine and Shipbuilding	Measurement of engine cooling lines Monitoring of sea water inlets Heavy fuel oil measurements
General Industry	Automated process control Large scale metering projects Measurement of steam condensate
