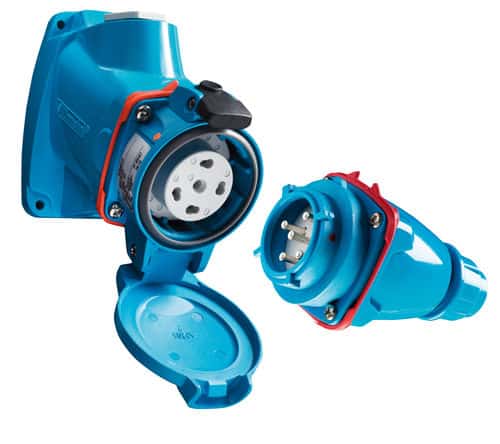

Marechal PN plugs and sockets are compact with a current rating of 30A. PN plugs and sockets are automatically IP66/IP67 water and dust-tight sealing when connected.

Marechal PN range are available with either a GRP or metal casing and are watertight, dual voltage, resistant to corrosion and have a reliable connection thanks to Marechal butt-contact technology making the range suitable for all industries.

Marechal PN Plugs & Sockets

Technical Features

Specification  Marechal PN Marechal PN HT
Rated Current (ln) 30A
Umax 500V
Keying Positions (To distinguish between different power supplies & applications) 16 4
Ambient Temperature -40ºC to +60ºC 240 °C
Ingress Protection Rating IP66/IP67 IP44
Impact Protection Rating GRP – IK08
Metal – IK09
IK09
Flexible Wiring (min – max) 1 mm² – 6 mm²
Stranded Wiring (min – max) 1.5 mm² – 10 mm²

Marechal plugs & sockets ordering information

PN – GRP Casing

PN Range GRP Casing Polarity Socket Outlet Female PN (30 A) Inlet Male PN (30 A)
20-24 V AC 2P 01N408A 01N808A
220-250 V AC 1P+N+E 01N4015 01N8015
380-440 V AC 3P+E 01N4013 01N8013
220-250 V AC | 380-440 V AC* 3P+N+E 01N4017 01N8017
480-500 V AC 3P+E 01N4093 01N8093
480-500 V AC 3P+N+E 01N4097 01N8097

Pn – metal casing

PN Range Metal Casing Polarity Socket Outlet Female PN (30 A) Inlet Male PN (30 A)
20-24 V AC 2P 09N408A 09N808A
220-250 V AC 1P+N+E 09N4015 09N8015
380-440 V AC 3P+E 09N4013 09N8013
220-250 V AC | 380-440 V AC* 3P+N+E 09N4017 09N8017
480-500 V AC 3P+E 09N4093 09N8093
480-500 V AC 3P+N+E 09N4097 09N8097

Pn HT – metal casing

Marechal PN HT is a range of high temperature plugs and sockets with a metal casing. They are suitable for use in areas with an ambient temperature of +240ºC.

PN HT Range Metal Casing Polarity Socket Outlet Female PN HT (30 A) Inlet Male PN HT (30 A)
20-24 V AC 2P 092408A185 092808A185
220-250 V AC 1P+N+E 0924015185 0928015185
380-440 V AC 3P+E 0924013185 0928013185
220-250 V AC | 380-440 V AC* 3P+N+E 0924017185 0928017185



PN Standards
MARECHAL PN Standards

Marechal PN plugs and sockets comply with:

  •  IEC/EN 60309-1 & IEC/EN 60309-4 European and International standards (plugs and socket-outlets for industrial purposes)
  • The European Low Voltage Directive 2014/35/EU, conformity with the CE marking
  • The European ‘Machine Directive’ 2006/42/CE regarding equipment isolation
  • The French NF C 15-100 standard
  • The French decree dated 20 December 2011 pertaining to the wiring and operating conditions of movable electrical apparatuses
  • The decrees relating to workers’ protection in Belgium, Spain and Italy
  • The UL 1682 (USA) and CSA C22.2 N° 182.1-07 (Canada) standards for plugs and socket-outlets
  • Also certified by VERITAS LCIE, UL, TR CU (GOST) and cCSAus (French, American, Russian and Canadian inspection laboratories).
Marechal PN Plugs & Sockets - Typical Configuration

Marechal PN Plugs & Sockets – Typical Configuration

Marechal PN HT High Temperataure Plugs & Sockets | Typical Configuration

Marechal PN HT High Temperataure Plugs & Sockets | Typical Configuration

Marechal PN Power Distribution Systems

Marechal PN plug and sockets are supported by an ancillary range of wall mounting sockets, wall boxes, socket outlets, sleeves, inlets and handles.

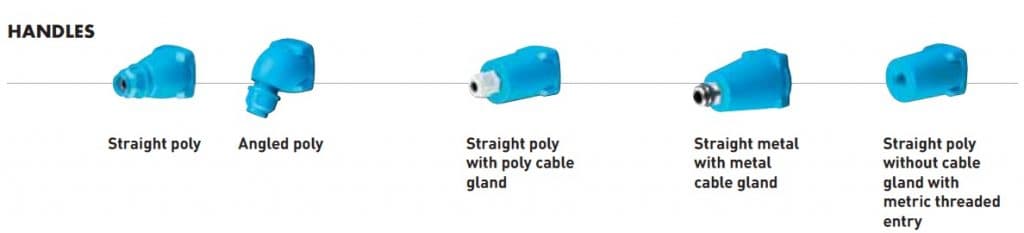

Marechal PN Handles

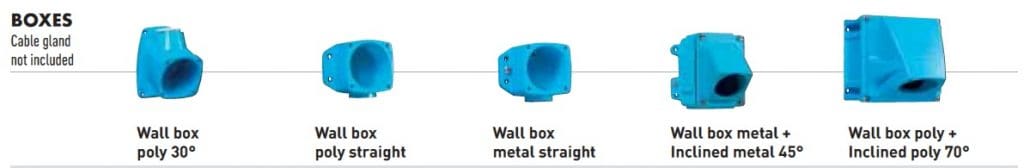

Marechal PN Boxes

IEC 60309 Plugs

IEC 60309 is an international standard from the International Electrotechnical Commission (IEC) for “plugs, socket-outlets and couplers for industrial purposes” and high-current power connectors.

Also certified by VERITAS LCIE, UL, AS, VDE, TR CU (GOST) and cCSAus (French, American, Australian, German, Russian and Canadian inspection laboratories) and by BUREAU VERITAS MARINE.

Hazardous Area Plugs Sockets

Visit Hazardous Area Plugs for Zone 1 & Zone 2 ATEX certified plugs and sockets for potentially explosive atmospheres.

Power Distribution & Control In Hazardous Areas

T&D also distribute hazardous area isolators, control panels and distribution boards, electrical enclosures and motor starters certified according to ATEX for use in Zone 1 & Zone 2 (gas/vapour) explosive atmospheres.
