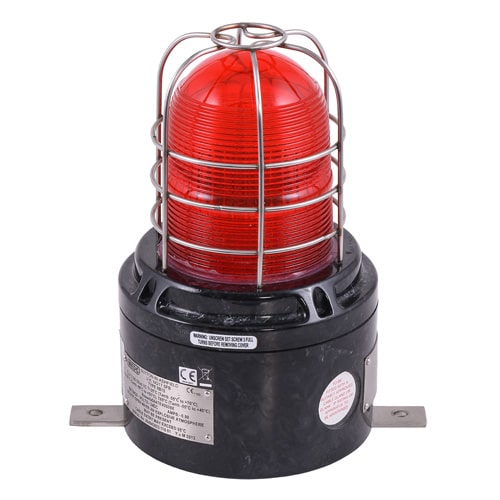

MEDC XB15 Hazardous Area Beacon
MEDC XB15 | ATEX Beacons
ZONE 1 & ZONE 2 HAZARDOUS AREAS
MEDC XB15 are ATEX beacons that have been designed for use in potentially Explosive Atmospheres and harsh environmental conditions in ATEX & IECEx Zone 1 and Zone 2 hazardous areas.
The enclosures of the Hazardous Area Beacons are suitable for use offshore or onshore where light weight combined with corrosion resistance is required, and can be ordered from Thorne & Derrick with MEDC call points for integration into fire detection systems in the explosive atmosphere industries.
The housings of the ATEX beacons are manufactured completely from a UV stable, glass reinforced polyester. Stainless steel screws and mounting bracket are available ensuring a totally corrosion-free product.
MEDC XB15 | Sil 1 Beacon
The MEDC XB15 hazardous area beacon contains a supervisory diode and four wire lead connections for alarm applications.
The high output hazardous area Xenon beacon, with explosion protection concept Ex d, can be painted to customers specification and supplied with identification labels.
In addition to the standard worldwide certificates, EN54-23 and SIL1 are both now available. As well as the MEDC XB15 ATEX beacons being certified from -55°C to + 70°C , the new control circuits have been designed to consistently energise at -55°C.
☎ 📨 Contact Thorne & Derrick for customer service, competitive quotations and availability from stock for the MEDC range of sounders, including MEDC XB15, for safe use in hazardous areas with explosive atmospheres.
ORDERING DETAILS
MEDC XB15 | EX D 5, 10 & 15 JOULE XENON BEACON
The MEDC XB15 hazardous area beacon is available in a choice of variants with mounting options for weatherproof and ordinary locations.
- XB15B (direct backstrap mount only) (Exd) (15J)
- XB15B (direct backstrap mount only) (Exd) (10J)
- XB15B (direct backstrap mount only) (Exd) (5J)
- XB15W (direct backstrap mount only) (weatherproof) (15J)
- XB15W (direct backstrap mount only) (weatherproof) (10J)
- XB15W (direct backstrap mount only) (weatherproof) (5J)
- XB15L (direct backstrap mount only) (UL) (15J)
- XB15L (direct backstrap mount only) (UL) (10J)
- XB15L (direct backstrap mount only) (UL) (5J)
- XB15L (pipe mount only) (UL) (15J)
- XB15L (pipe mount only) (UL) (10J)
- XB15L (pipe mount only) (UL) (5J)
- XB15UW (direct or backstrap mount) (ordinary locations) (15J)
- XB15UW (direct or backstrap mount) (ordinary locations) (10J)
- XB15UW (direct or backstrap mount) (ordinary locations) (5J)
- XB15UW (pipe mount only) (ordinary locations) (15J)
- XB15UW (pipe mount only) (ordinary locations) (10J)
- XB15UW (pipe mount only) (ordinary locations) (5J)
MEDC
The MEDC range of sounders and beacons from the Crouse Hinds series of Signalling & Alarms – a comprehensive range of Explosion Proof call points are also available with ATEX & IECEx certification and explosion protection to both Ex d (flameproof) and Ex ia (Intrinsically Safe) applications.
Eaton MEDC XB15
ATEX Beacons Zone 1 & Zone 2
ATEX Certified & Approved
Features
- 5J, 10J & 15J options
- Zone 1 & 2 (Gas) and Zone 21 & 22 (Dust) Hazardous Areas
- Explosion Protection | Ex db IIC, T4/T5/T6.
- ATEX approved, Ex II 2GD.
- IECEx Certified Gb, Db.
- UL listed for USA and Canada:
– Hazardous Locations with Explosive Atmospheres
Class I, Div. 2, Groups A, B, C & D.
Class II, Div 2 Groups F & G.
Class I, Zone 1, AExd IIC T4/T5/T6.
– Ordinary locations: Visual-Signal Device.
– Marine listed. - ULC Listed to Canadian Safety Standards
- TR CU certified.
- Chinese (CQST) certified.
- Brazilian (Inmetro) certified.
- IP66 & IP67 Ingress Protection
- EN54-23 Certified.
- SIL 1 Certified.
- Certified temperature: –55ºC to +70ºC.
- 5, 10 & 15J versions available.
- Hazardous area beacon with pipe mount or direct mount enclosure.
- Corrosion-free GRP.
- Four wire and supervisory diode.
- Optional stainless steel backstrap.
- Various lens colours.
- Optional relay or telephone initiate.
- Optional cast or wire lens guard.
- Up to 3 x M20 or 3 x M25 entries.
- LED version of ATEX beacon is available. (See Eaton MEDC LD15).
- Improved inrush current characteristics.
- Consistent extreme temperature start-up.

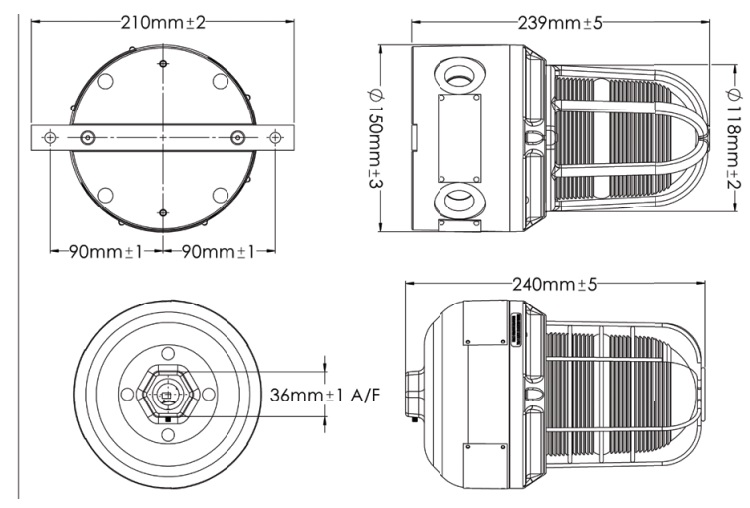

Eaton MEDC XB15 – Dimensions
ATEX Beacons Zone 1 & Zone 2
Nominal Voltage
Thorne & Derrick distribute intrinsically safe, flameproof and explosion proof loudspeakers, beacons and strobes, status lights and call points for warning signal systems in the hazardous area industries to suit all voltage requirements.
| Nominal voltage @ 60fpm |
d.c | a.c. 50/60Hz | |||||
| 24V | 48V | 110V | 120V | 230V | 240V | 254V | |
| Average current 5J (mA) | 330 | 150 | 120 | 130 | 70 | 70 | 70 |
| Average current 10J (mA) | 650 | 320 | 190 | 210 | 110 | 120 | 120 |
| Average current 15J (mA) | 900 | 430 | 220 | 250 | 140 | 160 | 140 |
MEDC XB15 Hazardous Area Beacon
Technical Specification
Should you require any further information to enable the selection or specification of explosion proof beacons and sounders with LED light source for use in potentially explosive atmospheres please contact us.
| Hazardous Area Certifications | |
| ATEX Ex d | Cert. no. Baseefa 04ATEX0009X Certified to: EN60079-0, EN60079-1, EN60079-31 Ex II 2GD Ex db IIC T4/T5/T6 Gb, Ex tb IIIC T85°C/T100°C/T135°C Db |
| IECEx Ex d | Cert. no. IECEx BAS 05.0048X Certified to: IEC60079-0, IEC60079-1, IEC60079-31 Ex db IIC T4/T5/T6 Gb. Ex tb IIIC T85°C/T100°C/T135°C Db |
| UL Haz Locs | Cert. no. E187894 Class I, Div 2, Groups A, B, C & D Class II, Div 2, Groups F & G Class I, Zones 1, AExd IIC T4/T5/T6 |
| UL Ord Locs/Marine | Cert. no. S8128. Visual signal device |
| ULC Haz Locs | For ULC ordering codes and technical details please refer to the US data sheet |
| TR CU Ex d | 1Ex db op is IIC T4/T5/T6 Gb X. Ex tb op is IIIC T85°C/T100°C/T135°C Db X Russian Fire Alarm approved |
| INMETRO Ex d | Ex d IIC T4/T5/T6 Gb, Ex tb IIIC T85°C/T100°C/T135°C Db |
| CQST Ex d | Ex db IIC T4/T5/T6 Gb Ex tb IIIC T85°C/T100°C/T135°C Db |
| SIL | SIL1 certification to IEC61508. Cert. No. Sira FSP 12004 (All DC versions. Does not include telephone initiate version) SIL1 certification to IEC61508. Cert. No. 20151123-4786980667 (All AC versions. Does not include telephone initiate version) |
| EN54-23 | LPCB: 1120b/01, CPR: 0832-CPR-F0761 (White) LPCB: 1120b/02, CPR: 0832-CPR-F0762 (Red) |
| CCCF | Chinese Compulsary Certification for Fire Systems (CCCF) |
| Specifications | |
| Material | Body: glass reinforced polyester Lens: borosilicate glass Backstrap: stainless steel 316 Wire guard (optional): stainless steel wire Cast guard (optional): aluminium LM25M |
| Finish | Natural black or painted to customer specification |
| Models | XB15 ATEX – available in direct mount version only XB15 UL – available in pipe and direct mount versions |
| Voltage | 24, 48V d.c. – 110, 120, 230, 240, 254V a.c |
| Tube energy | 5,10 & 15 Joule |
| Tube life | >1 x 106 flashes |
| Flash rate | 60, 80, 120 fpm |
| Certified temp | 15J: -55°C to +70°C (T4), -55°C to +40°C (T5) 10J: -55°C to +70°C (T4), -55°C to +55°C (T5), -55°C to +40°C (T6) 5J: -55°C to +70°C (T5), -55°C to +55°C (T6) |
| Weight | Pipe mount: 2.6kg; Direct mount: 3.0kg |
| Ingress protection | IP66 & IP67 |
| Entries | ATEX version: Standard: 2 x M20 Optional: 1 x M20/M25, 3 x M20/M25 entries UL version: Standard pipe: ¾” NPT Standard direct: 2 x ¾” NPT Optional direct: 1 x ½”/¾” NPT or 3 x ½”/¾” NPT Dual UL/ATEX, UL/IECEx: Standard direct: 2 x ¾” NPT |
| Terminals | Direct mount: 12 x 2.5mm²/14AWG. Pipe mount: 8 x 14AWG |
| Relay initiate | Operates with 24V d.c. initiate supplies only |
| Telephone initiate | Operates from telephone ringing voltage |
| Labels | Tag/duty label optional |

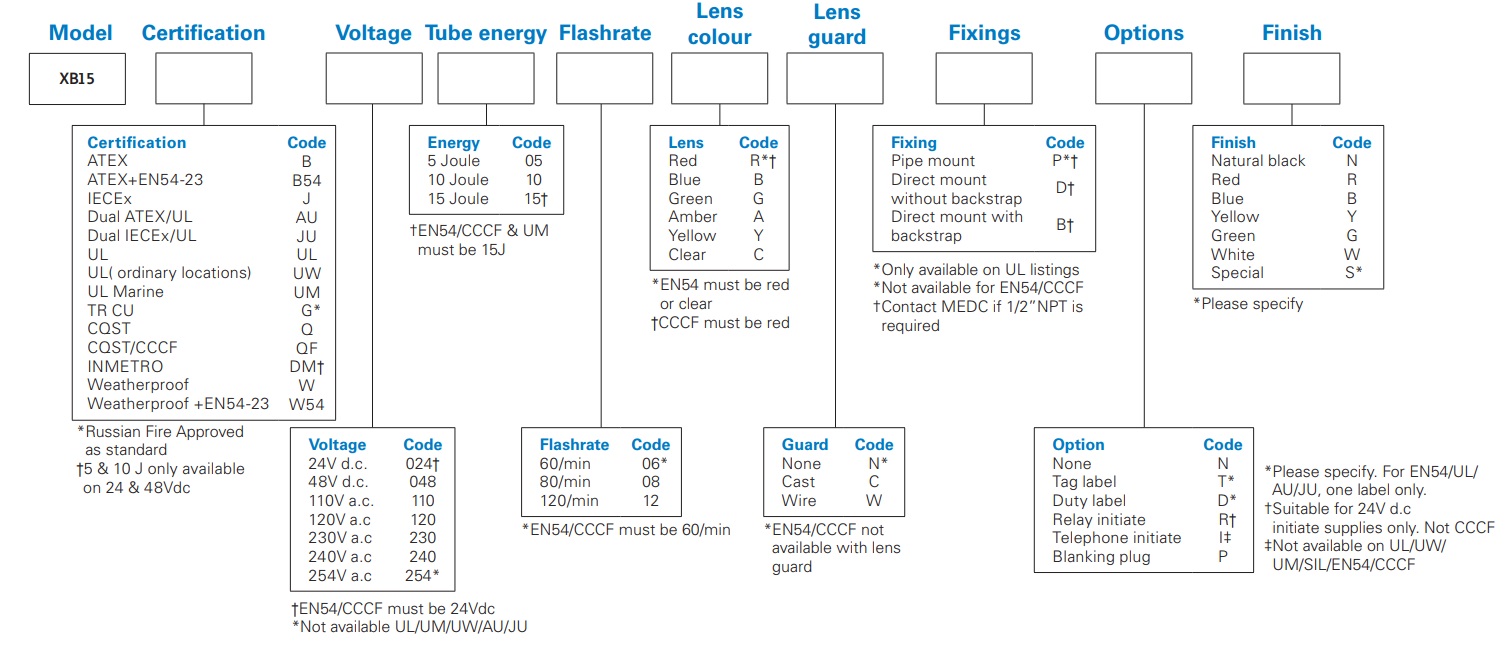

Eaton MEDC XB15 – Ordering Requirements
The following code is designed to help in selection of the correct MEDC hazardous area beacon with ATEX approval and certification. Build up the part number by inserting the code for each component into the appropriate box – contact our sales team for support and advice covering an extensive range of standard and innovative ATEX & IECEx equipment for use in explosive atmospheres.
