MEDC XB16 Hazardous Area Beacons
MEDC XB16 | ATEX BEACONS
ZONE 1 & ZONE 2 HAZARDOUS AREAS
MEDC XB16 are listed beacons designed for use in potentially explosive atmospheres and harsh environmental conditions. The enclosures are suitable for use offshore or onshore, where lightweight combined with corrosion resistance is required, and can be ordered from Thorne & Derrick with MEDC call points for integration into fire detection systems in the explosive atmosphere industries.
The housing is manufactured from a UV stable, glass reinforced polyester, with the lens manufactured from a UV stable polycarbonate. Stainless steel screws are used ensuring a totally corrosion-free product.
The model XB16 contains supervisory diode and four wire leads for fire alarm applications. This beacon is also available UL 1971 (ADA) listed for hearing impaired applications.
The MEDC XB16 beacons can be painted to customer specification and supplied with identification labels and conforms to UL standard or regulated voltage (UL 1971 version available with clear lens only).
Contact Thorne & Derrick for customer service, competitive quotations and availability from stock for the MEDC range of sounders, including MEDC XB16, for safe use in hazardous areas with explosive atmospheres.
Ordering Details
MEDC XB16 | UL 10 Joule beacon
The MEDC XB16 hazardous area beacon comes with UL certification for use in potentially explosive atmospheres and harsh environmental conditions.
- XB16UL/UW/US (UL/ordinary locations)
MEDC
The MEDC range of sounders and beacons from the Crouse Hinds series of Signalling & Alarms – a comprehensive range of Explosion Proof call points are also available with ATEX & IECEx certification and explosion protection to both Ex d (flameproof) and Ex ia (Intrinsically Safe) applications.

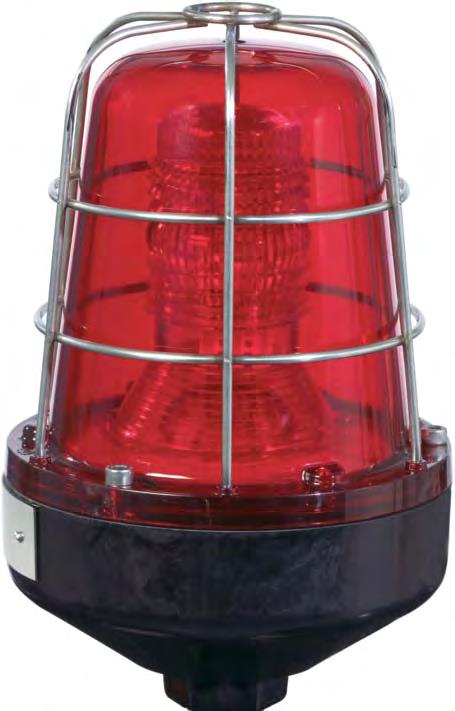

Eaton MEDC XB16
ATEX Beacons Zone 1 & Zone 2
ATEX Certified & Approved
Features
- UL listed for USA and Canada
- – Hazardous Locations with Explosive Atmospheres for USA and Canada
- Class I, Div. 2, Groups A, B, C & D*.
- Class II, Div. 2, Groups F & G.
- UL 1971 compliant version available†.
- Ordinary locations: Visual Signal Device
- ‘T’ Rating model dependent. Contact Cooper MEDC sales office for information.
- IP66 & IP67 Ingress Protection
- Certified temperature: –55°C to +70°C.
- Pipe mount with ¾” NPT entry.
- Corrosion-free GRP enclosure.
- 580,000 peak candlepower.
- Polycarbonate lens, various colors available†
- 4 Wire diode monitored board.
- Optional relay initiate.
- Optional lens guard.
Eaton MEDC XB16 – Dimensions
Beacons – Electrical ratings
Thorne & Derrick distribute intrinsically safe, flameproof and explosion proof loudspeakers, beacons and strobes, status lights and call points for warning signal systems in the hazardous area industries to suit all voltage requirements.
| Nominal voltage | d.c | a.c | |||||
| Voltage | 24 | 48 | 110 | 120 | 230 | 240 | 254 |
| Current (A) | 0.89 | 0.30 | 0.38 | 0.22 | 0.22 | 0.22 | 0.18 |

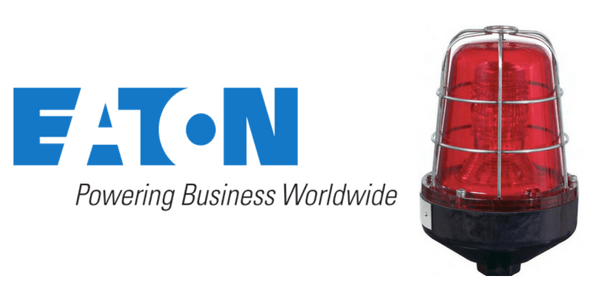

MEDC XB16 Beacon
Technical Specification
Should you require any further information to enable the selection or specification of explosion proof beacons and sounders with LED light source for use in potentially explosive atmospheres please contact us.
| Certification | UL Listed for USA and Canada: – Hazardous locations for USA and Canada: UL1604. Class I, Div 2, Groups A, B, C & D. Class II, Div. 2, Groups F & G. UL listing No. E251185. – Ordinary locations: Visual Signal Device: UL1638. UL listing No. E251185. – Hazardous locations for hearing impaired: UL1971. UL listing No. E251185. |
| Material | Body: Glass reinforced polyester. Lens: U.V. stable polycarbonate. Lens screws: stainless steel 316 |
| Finish | Natural black or painted to customer specification. |
| Voltage | 24V d.c., 48V d.c. 110, 120, 230, 240, 254V a.c. Conforms to UL regulated voltage output (24Vdc, 120Vac, 240Vac) |
| Certified Temp | –55ºC to +70ºC |
| Tube Energy | 10 Joules |
| Tube life | >1 x 106 flashes |
| Weight | 1.0kg |
| Ingress Protection | IP66 & IP67 |
| Entries | Standard 1 x 3/4″ NPT pipe mount. (Contact MEDC if 1/2″ NPT is required) |
| Terminals | 8 x 2.5sqmm |
| Labels | Tag/Duty label option. |

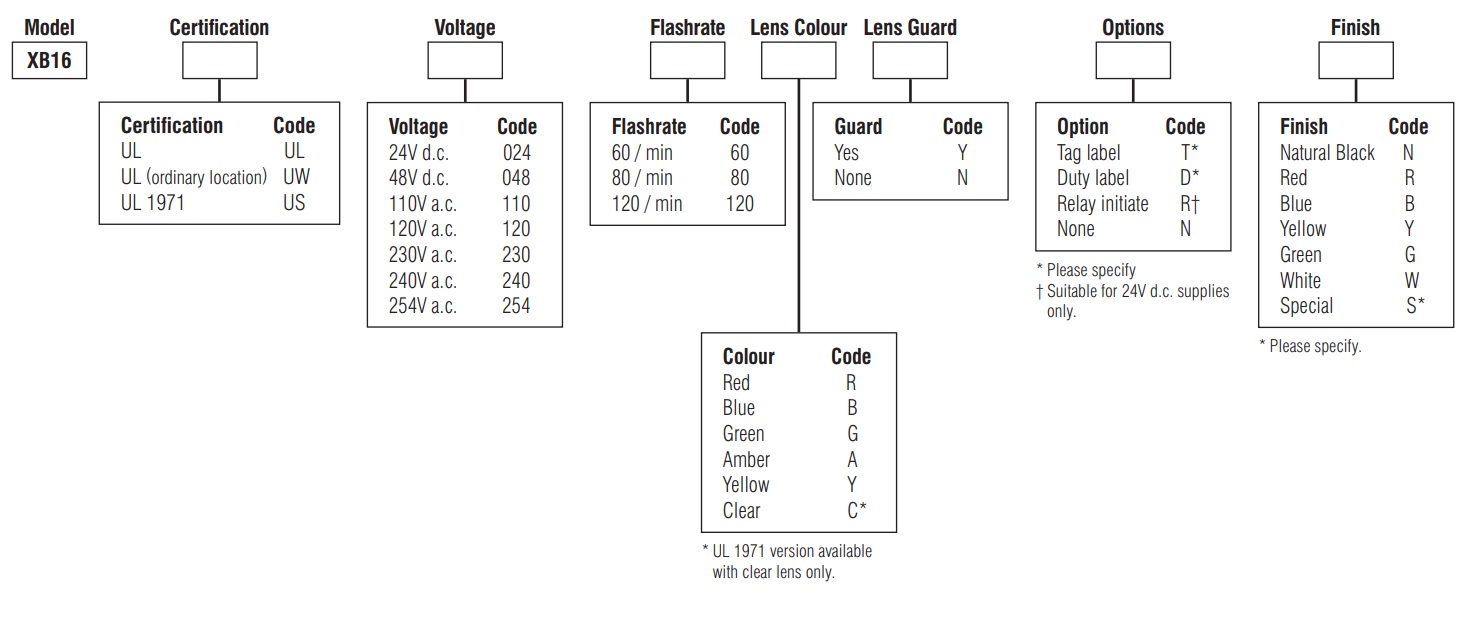

Eaton MEDC XB16 – Ordering Requirements
The following code is designed to help in selection of the correct MEDC beacon with UL certification. Build up the part number by inserting the code for each component into the appropriate box – contact our sales team for support and advice covering an extensive range of standard and innovative ATEX & IECEx equipment for use in explosive atmospheres.
Eaton MEDC XB16 – Ordering Requirements
