Marechal PNC Plugs & Sockets 16A Compact Connector
PNC Plugs & Sockets are part of the Marechal Industrial range.
plugs & sockets 16A
marechal pnc

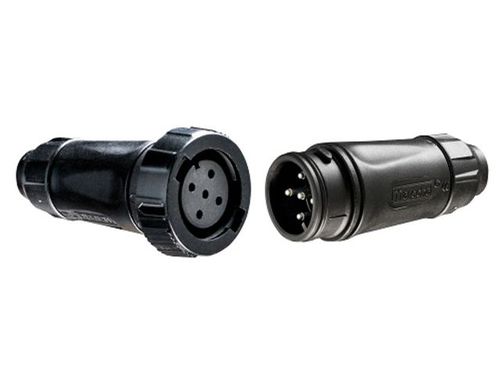

Marechal PNC plugs and sockets are compact with a current rating of 16A. PN plugs and sockets are automatically IP66/IP67 water and dust-tight sealing when connected.
Marechal PNC range are watertight, dual voltage, resistant to corrosion and have a reliable connection thanks to Marechal butt-contact technology making the range suitable for all industries, including aggressive environments where humidity, corrosion or pollution are an issue, including cities & transport infrastructure.
PNC plugs and sockets have an IP66/IP67 plug and socket-outlet (IP68/IP69K on specification) silver-nickel butt contacts and metallic braid, compliant with international standards.
âž¡ Ingress protection ratings explained in more detail here.
Marechal PNC Plugs & Sockets
Technical Features
| Electrical Features | |
| Maximum voltage | 480 V |
| Impulse withstand voltage | 5 kV / Pollution degree 3 |
| Contact resistance | ‹ 2mΩ |
| Permitted current range | 4 – 20 mA / 16 A |
| Polarity | 3P+N+E |
| Conductors accepted | From 0.75 mm² to 2.5 mm² – Screwed terminals |
| Cable diameter | From 11 to 15 mm (smaller ø available according to specification) |
| Mechanical Features | |
| Casing & insulator | Glassfibre reinforced thermoplastic UL94 V-0 |
| Butt contacts | Copper alloy with silver-nickel tips |
| Contact protection | Tinning |
| Load cycles | > 2000 cycles |
| Impact protection rating | IK08 Protected against 5 joules of impact (the equivalent to the impact of a 1.7 kg mass dropped from 300 mm above the impacted surface) |
| Vibration | Frequency 5-1000 Hz, 1 g (90 minutes on each critical frequency) according to IEC 6068-2-6 |
| Climatic Features | |
| Ambient temperature | -40 °C to +100 °C |
| Ingress protection socket with cap | IP66/IP67 IP69K 100bar (1450 PSI) 80 °C |
| Ingress protection connected plug | IP66/IP67 IP68 tested at 10 metres deep for 15 days (please contact us for references) IP69K 100bar (1450 PSI) 80 °C |
| Salt, fog performance | 200 h not connected > 1000 h connected |
| Resistance to fluids | Motor oils, petrol, oils, detergents |
Marechal PNC Plugs & Sockets Ordering Information
| Maximum Voltage | Polarity | Socket Outlet Female |
Inlet Male |
|
| Marechal PNC with M25 lock nut | 480 V AC | 5P | 01E4007 | 01E8007 |
| Marechal PNC | 01E3007 | 01E1007 |
MARECHAL PNC Standards
Marechal PNC plugs and sockets comply with:
- The requirements of IEC 61984, IEC 60529, IEC 62262, IEC 68-2-6 International standards
- The European Low Voltage Directive 2006/95/CE (2014/35/EU from April 20 2016)
- The French NF C 15-100 standard
- The decrees relating to workers’ protection in Belgium, Spain and Italy
- Also certified by TR CU (GOST) (Russian inspection laboratory)
IEC 60309 Plugs & Sockets
IEC 60309 is an international standard from the International Electrotechnical Commission (IEC) for “plugs, socket-outlets and couplers for industrial purposes” and high-current power connectors.
Also certified by VERITAS LCIE, UL, AS, VDE, TR CU (GOST) and cCSAus (French, American, Australian, German, Russian and Canadian inspection laboratories) and by BUREAU VERITAS MARINE.
Visit Hazardous Area Plugs for Zone 1 & Zone 2 ATEX certified plugs and sockets for potentially explosive atmospheres.
Power Distribution & Control In Hazardous Areas
T&D also distribute hazardous area isolators, control panels and distribution boards, electrical enclosures and motor starters certified according to ATEX for use in Zone 1 & Zone 2 (gas/vapour) explosive atmospheres.
MARECHAL PNC Plugs & Sockets | Technical Data Sheet
Download
