MEDC SM87 | Hazardous Area Beacon | ATEX Beacons Zone 1 & Zone 2 Steady Beacons LU1/LU3 Ex d

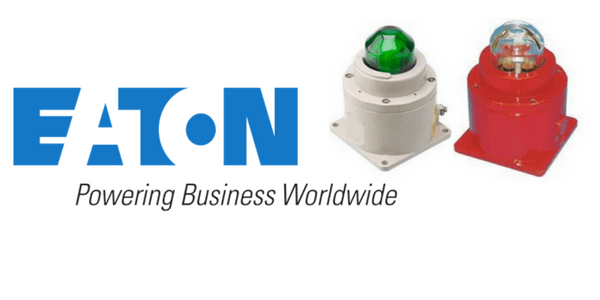

MEDC SM87 Hazardous Area Beacons

MEDC SM87 Hazardous Area Beacons

MEDC SM87 | ATEX Beacons

Zone 1 & Zone 2 Hazardous Areas

Eaton MEDC SM87 LU1/LU3 are ATEX beacons specifically designed for use in potentially explosive atmospheres and harsh environmental conditions in ATEX & IECEx Zone 1 and Zone 2 hazardous areas.

The marine grade alloy or stainless steel enclosures of the ATEX beacons are suitable for use offshore or onshore, where lightweight combined with corrosion resistance and strength is required.

The hazardous area beacons can be painted to customer specification and fitted with identification labels, and can be ordered from Thorne & Derrick with MEDC call points for integration into fire detection systems in the explosive atmosphere industries.

Stainless steel, one of the most durable materials available on the market, is both hard wearing and corrosion resistant, increasing the life of products in harsh environments and therefore reducing maintenance costs.

Contact Thorne & Derrick for customer service, competitive quotations and availability from stock for the MEDC range of sounders, including MEDC SM87 LU1/LU3, for safe use in hazardous areas with explosive atmospheres.

Ordering Details

MEDC SM87 LU1/LU3 | Ex d Filament Beacon

The MEDC SM87 hazardous area beacon is available in a choice of variants.

  • SM87LU3AB (price includes lamps) (Ex d)
  • SM87LU3AUL (price includes lamps) (UL)
  • SM87LU3SB (price includes lamps) (Ex d)
  • SM87LU3SC (price includes lamps) (CSA)

MEDC

The MEDC range of sounders and beacons from the Crouse Hinds series of Signalling & Alarms – a comprehensive range of Explosion Proof call points are also available with ATEX & IECEx certification and explosion protection to both Ex d (flameproof) and Ex ia (Intrinsically Safe) applications.

Eaton MEDC SM87 LU1/LU3

Eaton MEDC SM87 LU1/LU3

ATEX Beacons Zone 1 & Zone 2

ATEX

ATEX Certified & Approved

Features

  • Zone 1 & 2 (Gas) and Zone 21 & 22 (Dust) Hazardous Areas
  • Explosion Protection | Exd IIC T4/T6.
  • ATEX approved Ex II 2GD.*
  • UL listed for USA and Canada*
  • – Hazardous Locations with Explosive Atmospheres
    • Class I, Div. 1, Groups C & D.
    • Class I, Zone 1, AExd IIB.
  • BASEEFA certified.
  • CSA certified.*
  • IECEx certified.
  • TR CU certified.*
  • Chinese (CQST) certified.
  • Brazilian (Inmetro) certified.
  • Fluorescent.
  • Filament.
  • IP66 & IP67 Ingress Protection
  • Corrosion Resistant.
  • Fluorescent version of ATEX beacon is available suitable for obstruction or warning lighting.
  • Optional guard for hazardous area beacon

*Model dependent.

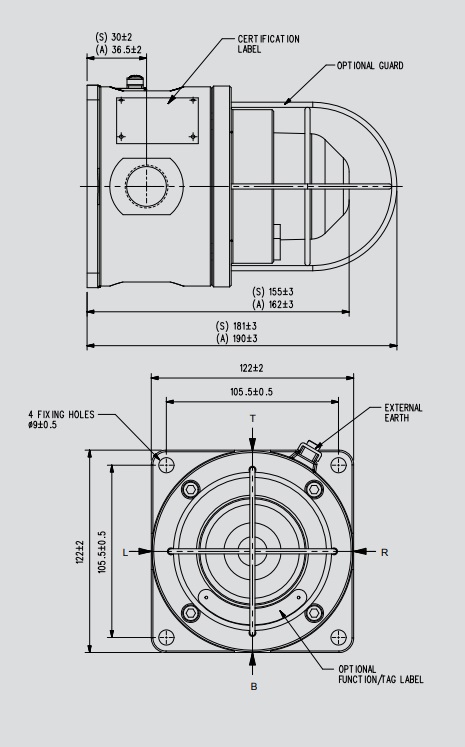

Eaton MEDC SM87 LU1/LU3 - Dimensions

Eaton MEDC SM87 LU1/LU3 – Dimensions

MEDC SM87 LU1/LU3 Hazardous Area Beacon

Technical Specification

Should you require any further information to enable the selection or specification of explosion proof beacons and sounders with LED light source for use in potentially explosive atmospheres please contact us.

Model SM87 LU1 – Fluorescent.
SM87 LU3 – Filament.
Hazardous Area Certifications
ATEX Ex d Cert. no. Baseefa 03ATEX0222.
Certified to: EN60079-0, EN60079-1, EN60079-31.
SM87 LU1: Ex d IIC T6 Gb, Ex tb IIIC T70ºC/T85ºC Db.
SM87 LU3: Ex d IIC T5/T6 Gb, Ex tb IIIC T70ºC/T85ºC/T100ºC Db
IECEx Ex d Cert. no. IECEx BAS 09.0059.
Certified to: IEC60079-0, IEC60079-1, IEC60079-31
SM87 LU1 Ex d IIC T6 Gb, Ex tb IIIC T70ºC/T85ºC Db.
SM87 LU3: Ex d IIC T5/T6 Gb, Ex tb IIIC T70ºC/T85ºC/T100ºC Db.
CSA Cert no. 96406.
Certified to: C22.2 Nos 0, 0.4, 0.5, 9, 30-M1986, 94-M91, 137-M1981.
Class I, Div 1 & 2, Group D.
CUTR Ex d SM87 LU1: 1Ex d IIC T6 Gb, Ex tb IIIC T70ºC/T85ºC Db.
SM87 LU3: 1Ex d IIC T5/T6 Gb, Ex tb IIIC T70ºC/T85vC/T100vC Db
INMETRO Ex d Exd IIC T4/T5/T6 Gb
CQST Exd IIC T4/T5/T6
Specifications
Material Grade 316 ANC4B Stainless Steel or Aluminium Alloy LM25TF with
glass lens.
Finish Epoxy paint finish as standard or to customer’s specification
Certified temp ATEX/IECEx SM87LU1 = -20ºC to +55ºC (T6)
SM87LU3 = -55ºC to +55ºC (T6)
-55ºC to +70ºC (T5)
Voltage 24, 48V d.c., 110V 220V 240V 254V a.c.
50Hz as standard. 60Hz available if required.
Fluorescent  10 Watt tube light output 600 Lumens (240V + 254V a.c. versions).
5 Watt tube max. light output 250 Lumens (d.c. versions & 110V a.c.).
Filament Single filament fitted as standard 10 watts.
Others may be available, please contact MEDC with your requirements
Terminals 7 Watts for 24V d.c., 48V d.c., 110V a.c., 220V a.c.
14 Watts for 240V a.c.
15 Watts for 254V a.c
Weight Stainless Steel – 3.8kg each. Alloy – 2.5kg.
Ingress Protection NEMA 4x & 6, IP66 & IP67
Entries SM87 LU1 – Up to 3 x M20 or M25 (not on RHS).
SM87 LU3 – Up to 4 x M20 or M25.
Terminals 4 off for up to 1.5sqmm cable

Eaton MEDC SM87 LU1/LU3 – Ordering Requirements

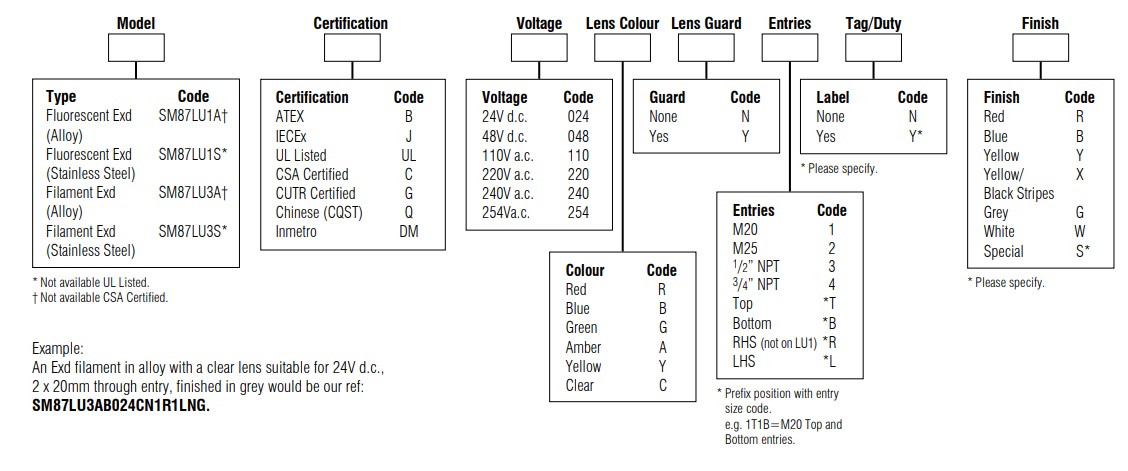

The following code is designed to help in selection of the correct MEDC hazardous area beacon with ATEX approval and certification. Build up the part number by inserting the code for each component into the appropriate box – contact our sales team for support and advice covering an extensive range of standard and innovative ATEX & IECEx equipment for use in explosive atmospheres.

Eaton MEDC SM87 LU1 LU3 - Ordering Requirements

Eaton MEDC SM87 LU1 LU3 – Ordering Requirements

ATEX IECEX Approvals

ATEX IECEX Approvals | International Hazardous Area Classifications & Approvals

Eaton MEDC

Eaton MEDC have developed ATEX products, including ATEX Beacons, designed for harsh and hazardous area conditions and where there is a risk of explosion due to the presence of flammable gas and dust atmospheres both onshore and offshore – since 1975 MEDC have been designers and manufacturers of alarm, signal, control and communications equipment. T&D distribute the extensive range of Eaton MEDC products – this includes ATEX Certified manual call points, visual, audible alarms, loudspeakers and telephones for hazardous area workplaces, including Zone 1 & Zone 2 explosive atmospheres.
