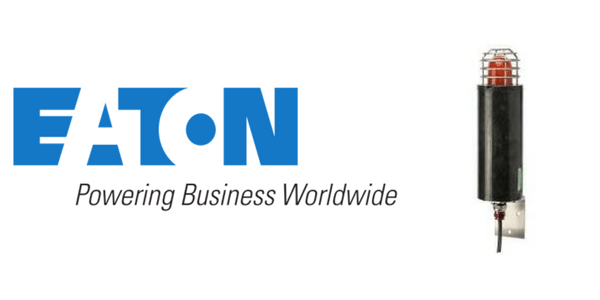

MEDC XB9 Hazardous Area Beacon
MEDC XB9 | ATEX BEACONS
ZONE 1 & ZONE 2 HAZARDOUS AREAS
MEDC XB9 are ATEX beacons that have been designed for use in potentially explosive atmospheres and harsh environmental conditions in ATEX & IECEx Zone 1 and Zone 2 hazardous areas.
The housing of the ATEX beacon is manufactured completely from a UV stable glass reinforced polyester which is ideally suited for use offshore and onshore, and can be ordered from Thorne & Derrick with MEDC call points for integration into fire detection systems in the explosive atmosphere industries.
Stainless Steel screws and mounting bracket are incorporated ensuring a totally corrosion free unit.
The high output hazardous area Xenon beacon, with explosion protection concept Ex d, can be painted to customers specification and supplied with identification labels.
Contact Thorne & Derrick for customer service, competitive quotations and availability from stock for the MEDC range of sounders, including MEDC XB9, for safe use in hazardous areas with explosive atmospheres.
ORDERING DETAILS
MEDC XB9 | EX D 5 JOULE XENON BEACON
The MEDC XB9 hazardous area beacon is available in a choice of variants with mounting options for weatherproof and ordinary locations, and optional lens guard available.
- XB9 (Ex d) (price of lens guard must be added to this price)
- XB9W (weatherproof only) (price of lens guard must be added to this price)
MEDC
The MEDC range of sounders and beacons from the Crouse Hinds series of Signalling & Alarms – a comprehensive range of Explosion Proof call points are also available with ATEX & IECEx certification and explosion protection to both Ex d (flameproof) and Ex ia (Intrinsically Safe) applications.
MEDC LD15
ATEX Beacons Zone 1 & Zone 2
ATEX Certified & Approved
Features
- Zone 1 & 2 (Gas) and Zone 21 & 22 (Dust) Hazardous Areas
- Explosion Protection | Exd IIC T6.
- ATEX Approved, Ex II 2G.
- BASEEFA Certified.
- TR CU Certified.
- IP66 & IP67 Ingress Protection
- Certified Temperature: –55°C to +55°C.
- Corrosion Free GRP.
- Various lens colours for ATEX beacons
- Lens guard fitted as standard.
- Optional gland plus cable tail.
- Stainless steel mounting bracket & screws.
- Replaceable tube available for hazardous area beacons
Eaton MEDC XB9 – Dimensions
ATEX Beacons Zone 1 & Zone 2
Nominal Voltage
Thorne & Derrick distribute intrinsically safe, flameproof and explosion proof loudspeakers, beacons and strobes, status lights and call points for warning signal systems in the hazardous area industries to suit all voltage requirements.
| Nominal voltage | d.c | a.c. 50/60Hz | ||||
| 12 | 24 | 48 | 60 | 110 | 240/254 | |
| XB9 tube energy (Joules) | 5 | 5 | 5 | 5 | 5 | 5 |
| Current (mA) | 0.65 | 0.35 | 0.18 | 0.13 | 0.08 | 0.06/0.057 |
| Effective intensity (Cd) | 29 | 29 | 29 | 29 | 29 | 29 |
| Peak intensity (Cd) | 22213 | 22213 | 22213 | 22213 | 22213 | 22213 |
| Power consumption (Watts) | 8 | 9 | 9 | 8 | 9 | 15 |
MEDC XB9 Hazardous Area Beacon
Technical Specification
Should you require any further information to enable the selection or specification of explosion proof beacons and sounders with LED light source for use in potentially explosive atmospheres please contact us.
| Hazardous Area Certifications | |
| ATEX Ex d | Cert. no. Baseefa 04ATEX2031. Certified to: EN60079-0, EN60079-1. Ex II 2G, Ex d IIC T5/T6 Gb |
| IECEx Ex d | Cert. no. IECEx BAS 10.0113. Certified to: IEC60079-0, IEC60079-1. |
| CUTR Ex d | 1Ex d IIC T5/T6 Gb. |
| INMETRO Ex d | Ex d IIC T5/T6 Gb. |
| CQST Ex d | Ex d IIC T5/T6 Gb |
| Specifications | |
| Material | Body & Cover: Glass Reinforced Polyester (GRP). Lens: Glass. Cover Screws & Bracket: Stainless Steel 316. |
| Finish | Natural black or painted to customer specification |
| Certified temp | –55ºC to +40ºC (T6). –55ºC to +55ºC (T5). |
| Weight | 1.6kg |
| Ingress protection | IP66 & IP67 |
| Fire retardancy | GRP is fire retardant to ISO 1210. |
| Terminals | 3 x 2.5sqmm |
| Entries | 1 x M20 or PG 13.5 |
| Mounting | Wall mounted via bracket. |
| Optional | 1 x 3m cable tail and gland |
| Tube life | >1×106 flashes |
Eaton MEDC XB9 – Ordering Requirements
The following code is designed to help in selection of the correct MEDC hazardous area beacon with ATEX approval and certification. Build up the part number by inserting the code for each component into the appropriate box – contact our sales team for support and advice covering an extensive range of standard and innovative ATEX & IECEx equipment for use in explosive atmospheres.
Eaton MEDC XB9 – Ordering Requirements
