ASCO 256 Solenoid Valves – Oil/Gas Subminiature Shut-Off Valve (2 Way)

ASCO 256 solenoid valves

ASCO 256 solenoid valves. T&D are an ASCO Numatics Authorised Distribution Channel.

ASCO 256 solenoid valves are part of the ASCO Red Hat range of valves.

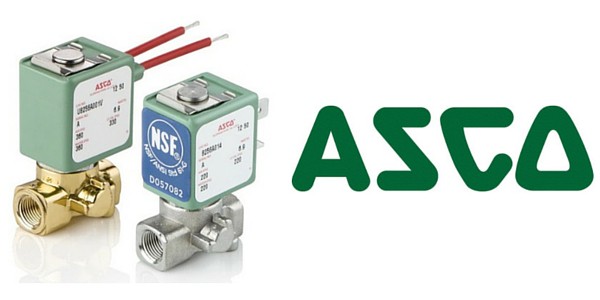

ASCO 256 solenoid valves are manufactured with compact a design in order to fit in tight spaces and are mountable in any position.

With brass and 316 stainless steel body constructions, typical applications for the ASCO 256 solenoid valves include commercial kitchen and laundry equipment, heating and bottling equipment.

In addition, there is an NSF 61 Annex G and 169 version available for potable water and food service applications.

ASCO 256 Solenoid Valves – Product Construction

Valve Parts in Contact with Fluids
General Purpose NSF
Body Brass 316 Stainless Steel 316 Stainless Steel
Core Tube/Bonnet S.S. / Plated Steel S.S. / S.S S.S. / S.S
Core and Plugnut Stainless Steel
Springs Stainless Steel
Seals and Disc FKM EPDM
Shading Coil Copper Copper



ASCO 256 solenoid valves – Electrical Characteristics

Prefix Standard Coil and Class of Insulation Watt Rating and Power Consumption Temp.˚F Spare Coil Family
DC Watts AC
Watts VA Holding VA Inrush AC DC
U F 6.9 6.3 8.8 12.1 15 to 140 400117 400117
SC F 6.9 6.3 8.8 12.1 15 to 140 400127 400127



ASCO SOLENOID VALVES – HAZARDOUS AREA LOCATIONS, safety & standards

ASCO solenoid valves (2-way, 3-way and 4-way type including NAMUR interfaces) control the critical flow of air, gas, water, oil and steam across all industries – hazardousSIL IEC 61508 - Solenoid Valves area solenoid valves are available for Division and Zone classifications.

Class I, Division 2 and Zone 1/Zone 2 approved solenoid valves according to ATEX, IECEx, FM, CSA and UL are available. Flameproof and explosion-proof valves can be specified for potentially explosive atmospheres where there is a presence of flammable liquids, gases or vapours.

ASCO valves improve reliability and performance of safety systems according to IEC 61508, IEC 61511 and Safety Integrity Levels (SIL) – ASCO spool valves with SIL 4 capability are SAEL listed as assessed by Exida and TÜV.

➡ Did you know? T&D Exports support the global oil, gas and petrochemical industries providing a single-source supply capability of Hazardous Area Equipment across Electrical, Mechanical, Process & Instrumentation ranges.
