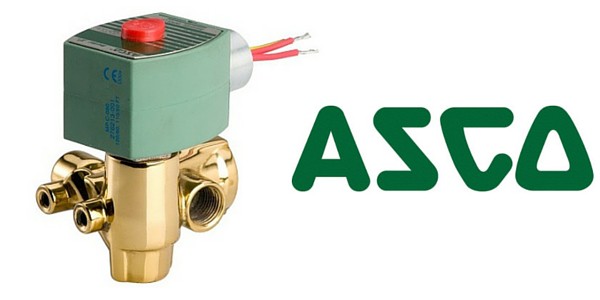

ASCO 321 solenoid valves

ASCO 321 solenoid valves are part of the ASCO Red Hat range of valves.

ASCO 321 solenoid valves are pilot operated valves with resilient seated poppets for tight shutoff and are designed for quick venting to 0 psi through the exhaust orifice.

When using the ASCO 321 solenoid valves, the air is quickly exhausted to shift control valves.

Other key features of the valves include the ability to mount in any position and suitability of installations in many industries.

 ASCO 321 Solenoid Valves – Ambient Temperatures

AC: 32˚F to 125˚F (0˚C to 52˚C)

DC: 32˚F to 104˚F (0˚C to 40˚C)

ASCO 321 Solenoid valves – product construction

Valve Parts in Contact with Fluids
BodyBrass304 stainless steel
Seals And DiscNBR (PA upper disc for 8317 Series)
DiaphragmCR (8317 Series only)
Core Tube305 Stainless Stee
Core And Plugnut430F Stainless Steel
Core Springs302 Stainless Steel and 17-7 PH Stainless Steel
Shading CoilCopperSilver
Pilot Seat Cartridge and Disc-HolderCA (8321 Series only)
PistonBrass and 303 Stainless Steel (8321 only)

ASCO 321 Solenoid Valves – Electrical Characteristics

Standard Coil and Class of InsulationWatt Rating and Power ConsumptionSpare Coil Part Number
DC WattsACGeneral PurposeExplosion proof
WattsVA HoldingVA InrushACDCACDC
F10.66.11630238210238310238214238314
F11.610.12550238610238710238614238714

ASCO SOLENOID VALVES – HAZARDOUS AREA LOCATIONS, safety & standards

ASCO solenoid valves (2-way, 3-way and 4-way type including NAMUR interfaces) control the critical flow of air, gas, water, oil and steam across all industries – hazardousSIL IEC 61508 - Solenoid Valves area solenoid valves are available for Division and Zone classifications.

Class I, Division 2 and Zone 1/Zone 2 approved solenoid valves according to ATEX, IECEx, FM, CSA and UL are available. Flameproof and explosion-proof valves can be specified for potentially explosive atmospheres where there is a presence of flammable liquids, gases or vapours.

ASCO valves improve reliability and performance of safety systems according to IEC 61508, IEC 61511 and Safety Integrity Levels (SIL) – ASCO spool valves with SIL 4 capability are SAEL listed as assessed by Exida and TÜV.

➡ Did you know? T&D Exports support the global oil, gas and petrochemical industries providing a single-source supply capability of Hazardous Area Equipment across Electrical, Mechanical, Process & Instrumentation ranges.
