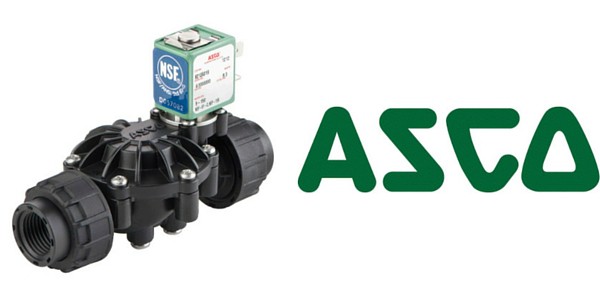

ASCO 212 Solenoid Valves – Water Conditioning & Purification Composite Solenoid Valve

ASCO 212 solenoid valves. T&D are an ASCO Numatics Authorised Distribution Channel..

ASCO 212 solenoid valves. T&D are an ASCO Numatics Authorised Distribution Channel.

ASCO 212 solenoid valves are part of the ASCO Red Hat range of valves.

ASCO 212 solenoid valves are composite valves used for the purification, distribution and conditioning of water in industrial markets with membrane based reverse osmosis systems.

Reverse osmosis systems are typically found in several drinking water applications including restaurants, food and beverage equipment, and grocery store vegetable misting.

ASCO 212 Solenoid Valves – Product features

Tested and certified by NSF international

  • NSF 61-G: Drinking Water System Components (includes Lead Free requirements)
  • NSF 169: Special Purpose Food Equipment and Devices
  • NSF 42: Drinking Water Treatment Units – Material and Structural Integrity Requirements
  • NSF 372: Drinking Water System Components – Lead Content Certification

Modular design with fasN technology, the worlds first universal connection system

  • The new ASCO FasN technology enables a quick and reliable connection system
  • Available in Turn & Lock, NPT Thread, and Solvent Bond

Up to 150 psi and 180°F

ASCO provides the most reliable valve on the market, with the highest performance

Increased reliability

ASCO’s innovative design is tested for up to 1 million cycles

Manual override system

Allows for manual operation of the valve for system filling and troubleshooting

Low power coils

6.3 W in AC and 6.9 W in DC normally closed versions

Wide range

From 3/8″ to 1″

ASCO fasN Connection System – reliable and secure connections

ASCO solenoid valves fasN system

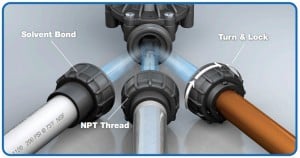

ASCO solenoid valves fasN connect locking system

The ASCO fasN connection system is easy to install and saves time when replacing a valve. The system also has the ability to mix different types of connections onto a single valve and can be fit with either copper, (CTS), PEX or PVC pipe.

ASCO FasN quickly connects to all types of fittings for the most rapid assembly, lowest cost, and greatest design flexibility.

ASCO 212 Solenoid Valve – Product Specifications

Pipe/Tubing TypeFasN End ConnectionPort SizeMOPD (water)Fluid TemperatureOperationWattage
NPTNPT Threaded Pipe3/8″150 psi (10.3 bar180˚F (82˚C)Normally ClosedAC = 6.3W DC = 6.9W
Copper (CTS), PEX TubingTurn & Lock1/2″
PVC PipeSolvent Bond3/4″Normally OpenAC = 11W DC = 10W
1″

ASCO 212 Solenoid Valves – Product Construction

BodyComposite, Engineered Plastic (PPE)
Core Tube/ BonnetStainless steel
Core and plugnutStainless steel
SpringsStainless steel
Seals and discEPDM, TPE
Shading coilCopper

ASCO SOLENOID VALVES – HAZARDOUS AREA LOCATIONS, safety & standards

ASCO solenoid valves (2-way, 3-way and 4-way type including NAMUR interfaces) control the critical flow of air, gas, water, oil and steam across all industries – hazardousSIL IEC 61508 - Solenoid Valves area solenoid valves are available for Division and Zone classifications.

Class I, Division 2 and Zone 1/Zone 2 approved solenoid valves according to ATEX, IECEx, FM, CSA and UL are available. Flameproof and explosion-proof valves can be specified for potentially explosive atmospheres where there is a presence of flammable liquids, gases or vapours.

ASCO valves improve reliability and performance of safety systems according to IEC 61508, IEC 61511 and Safety Integrity Levels (SIL) – ASCO spool valves with SIL 4 capability are SAEL listed as assessed by Exida and TÜV.

➡ Did you know? T&D Exports support the global oil, gas and petrochemical industries providing a single-source supply capability of Hazardous Area Equipment across Electrical, Mechanical, Process & Instrumentation ranges.
