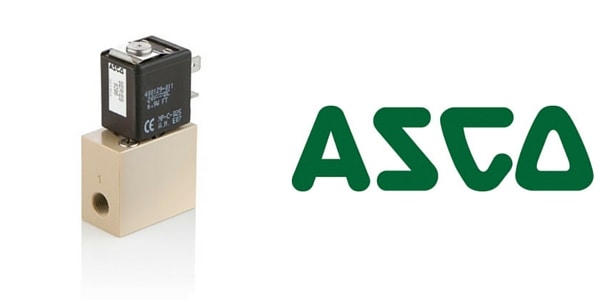

ASCO 296 Solenoid Valves – 2 Way High Flow Bellow Isolation Solenoid Valve

ASCO 296 solenoid valves. T&D are an ASCO Numatics Authorised Distribution Channel.

ASCO 296 solenoid valves. T&D are an ASCO Numatics Authorised Distribution Channel.

ASCO 296 solenoid valves are part of the ASCO Red Hat range of valves.

  • Manufacturer : ASCO
  • Product : Solenoid Valve
  • Type : High Flow Bellow Isolation
  • Series : ASCO 296
  • Valve Body : PEEK, 300 Series Stainless Steel
  • Valve Voltage : 24 VDC
  • Flow Control Media : Aggressive Liquids/Gases
  • Valve Function : Normally Closed – G 1/4 to G 3/8 –  2 Way: 2/2

NC = Normally Closed Valve

NO = Normally Opened Valve

Temperature Range:

Ambient: 14˚F to 140˚F (-10˚C to 60˚C)

Media: 14ºF to 194ºF (-10ºC to 90ºC)



ASCO 296 SOLENOID VALVES – FEATURES

  • Reliable operation with a wide variety of media due to inert wetted materials such as PEEK, PTFE, stainless steel, and FFKM
  • High flow rates of corrosive or high purity fluids
  • Higher pressure ratings than typical isolation valves

Typical applications of the ASCO 296 solenoid valves include in the pharmaceutical, biochemical, photographic, chemical and analytical industries, in chip and wafer production.

ASCO 296 Solenoid Valves – Product Construction

Valve Wetted Parts
BodyPEEK, 300 Series Stainless Steel
SealsFFKM
BellowsPTFE

ASCO 296 Solenoid Valves – Electrical Characteristics

Standard Voltage24 VDC
Power Consumption6.9, 11.2 Watts
Duty Cycle RatingContinuous
 Coil Insulation311ºF (155ºC)
 Electrical ConnectionDIN Spade Terminals
 DIN Connectors
 – 6.9 Watt CoilSize 11mm, DIN 43650 Form B
 – 11.2 Watt CoilSize 18mm, ISO 4400/EN 175301-803 Fom A

ASCO SOLENOID VALVES – HAZARDOUS AREA LOCATIONS, safety & standards

ASCO solenoid valves (2-way, 3-way and 4-way type including NAMUR interfaces) control the critical flow of air, gas, water, oil and steam across all industries – hazardousSIL IEC 61508 - Solenoid Valves area solenoid valves are available for Division and Zone classifications.

Class I, Division 2 and Zone 1/Zone 2 approved solenoid valves according to ATEX, IECEx, FM, CSA and UL are available. Flameproof and explosion-proof valves can be specified for potentially explosive atmospheres where there is a presence of flammable liquids, gases or vapours.

ASCO valves improve reliability and performance of safety systems according to IEC 61508, IEC 61511 and Safety Integrity Levels (SIL) – ASCO spool valves with SIL 4 capability are SAEL listed as assessed by Exida and TÜV.

➡ Did you know? T&D Exports support the global oil, gas and petrochemical industries providing a single-source supply capability of Hazardous Area Equipment across Electrical, Mechanical, Process & Instrumentation ranges.
